Accuracy of measurement: 1.0 x 10 ^ - 4 to 3.0 x 10 + 0 Pa: +/- 10% (ST 200 -A single unit mode), 1.0 x 10 ^ - 4 to 1.0 x 10 + 4 Pa: +/- 10% 1.0 x 10 ^ 4 to 1.0 x 10 ^ 5 Pa: +/- 20% (ST 200 -A + SWU 10 - R combination mode), 1.0 x 10 ^ - 4 to 1.0 x 10 ^ 4 Pa: +/- 10% 1.0 x 10 ^ 4 to 3.0 x 10 ^ 5 Pa: +/- 3% F.S. (3.0 x 10 ^ 3 Pa, reference temperature 25 degrees C) (ST 200 -A + SWU 10 - R + SAU combination mode)
SWT -16 (NW 16)/SWT -25 (NE 25) : Ionizing vacuum measuring stator
ISG1 : Indicator
SWU 10 - R : Pirani vacuum gauge with 0.5 m cable
SWP -16 (NW 16) : Pirani measurer
SAU (NW 16) : atmospheric pressure sensor with 0.5 m cable

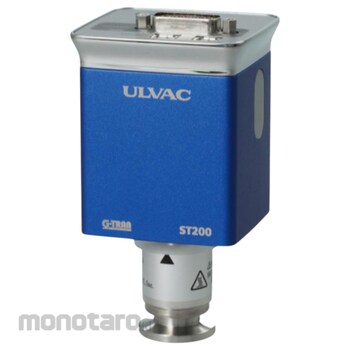

ULVAC Ionizing Vacuum Meter
#Grup produk P111166831
Sebelum PPN:
Rp88.999.900 - Rp129.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Display Cable (m) | 5 (Cable Between Display and Main Unit) |
|---|---|
| External Dimension (mm) | ST 200 + Measurer/69x63x120; ISG 1/48x70x96; SWU 10 - R + Measurer/40x81; SAU + Measurer/30x67.5 |
| Included | AC Adapter |
| Measured Value Output (V) | (Output Voltage) DC 0 to 10; (LOG Output) 0.75/1 digit |
| Measuring range (Pa) | 1.0x10^-5 to 1.0x10^1 |
| Operating Temperature Range (°C) | 10 to 50 (ST 200 -A) |
| Power Supply Voltage | 20 to 28VDC (Ripple, Noise 1% or Less) 8W or less |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
- Foto pada halaman ini hanya sebagai referensi (ilustrasi) yang sesuai dengan fungsinya- Produk yang diterima akan sesuai dengan informasi model number/part number/size/warna/type/atribut yang tertera pada website
Feature
- Measurers of different measurement ranges can be connected: Multi-ion gauge allows selection of measurers according to application.- Compact: Significantly smaller than previous models (56% reduction in controller volume), world's smallest class Usability: PC/smartphone connection enables setpoint setting, status checking, etc. Full lineup: In addition to analog output specifications (ST200-A) and serial communication specifications (ST200-R), EtherCAT specifications (ST200-E) will be added. - World's first triode metal ionization vacuum gauge (patent pending): Long life even in a difficult environment for vacuum gauges. - Filament life notification function: Filament power monitoring allows advance notification of filament life. - Wide range of pressure measurements: from atmospheric pressure to high vacuum area (1 x 10+5~1 x 10-5 Pa) (when optional unit SWU10-R is connected). - Accurate atmospheric pressure measurement: Confirmation of atmospheric pressure for chamber opening (when optional unit SAU is connected).
