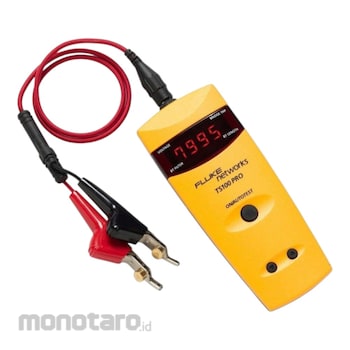

FLUKE Networks TS100 Pro Cable Fault Finder Tdr Kit with Bridge Tap Detect
#Grup produk P111163515
Spesifikasi
| Battery Life (hour) | 35 (typical) |
|---|---|
| Dimensions (inch) | 7.4x2.7x1.4 |
| Distance to Bridge Tap (m) | 975 |
| High Voltage Detection (V) | AC voltage detected to 115; DC voltage detected to ±150; AC voltage ≥90 or DC voltage ≥100 causes high voltage warnings to show on the display |
| Impedance Range (Ω) | 35 to 330 with auto-compensation within this range. Cables with impedances outside this range will not be properly tested and may produce erratic or incorrect readings. |
| Length Accuracy (m) | ±0.6 for cables less than (3m); ±2 for cables longer than (3m) and shorter than (60m); ±2 for cables longer than (60m) |
| Max. Output Voltage (V) | 4 (Peak) |
| Maximum Isolation Voltage (V) | 250 (RMS) |
| Measurement Rate | Maximum of 4 complete measurements per second, decreasing to 2 seconds per measurement based on cable size and uniformity. |
| Operating Altitude (m) | Max. 3000 |
| Operating Humidity | 80% maximum at 30°C; 50% maximum at 40°C |
| Power | 4 AA alkaline batteries |
| Relative Humidity | (Operating) 20% to 80%; (Storage) 0% to 100% |
| SmartTone (5-tones) Range (m) | 2134 |
| Temperature Range (°C) | (Operating) 0 to 40; (Storage) 0 to 55 |
| Test Technology | Time Domain Reflectometry (TDR) with 100 Ω drive impedance, 6v maximum pulse height. |
| Tone Injection | Approximately 1kHz at an amplitude of 80% of battery voltage. Variable frequency and cadence. Tone characteristics change as cable condition changes to “normal-open” from any other condition. |
| Toner Range (m) | 16093 |
| VOP | Adjustable from 20 to 99, saved in flash memory |
| Voltage Measurements (V) | (Range) 0 AC to 115 AC; 0 DC to ±150 DC; (Accuracy) AC = +/-1%+/-2 (45 Hz to 65 Hz); DC = +/-1%+/-2 DC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Fault finder TDR with tone generator locates open and short circuits, measures cable length, finds multiple bridge taps, helps isolate individual wire pairs, and reports any AC/DC voltage on the line- Comes with a set of test leads that has ABN and piercing pin clips that allow access to individual wire pairs
- Finds the distance to and length of multiple bridge taps in up to 3,200' of cabling and can see past all bridge taps to the end of the cable
- VOP can be set to match a cable's specifications to optimize the accuracy of fault location and cable length measurement
- Features a built-in analog tone generator with patented SmartTone technology for exact pair identification and a four-digit LED display for viewing readings
