- MicroScanner PoE Cable Verifier with Industrial Ethernet adapter
- Save time by locating faults in 2 or 4 pair cables running EtherNet/IP, PROFINET, MODBUS and other ethernet protocols in 4 seconds
- Diagnoses of the most common faults displayed on the large backlit screen
- Identify exactly where the fault is in meter or feet

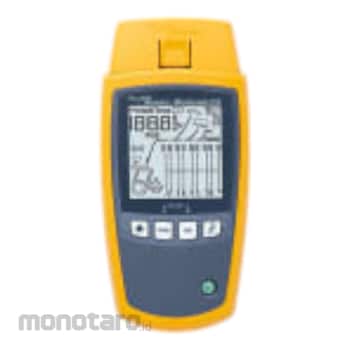

FLUKE Networks MS-POE Industrial Ethernet Tester
#Grup produk P111161632
Sebelum PPN:
Rp49.999.900 - Rp57.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Altitude (m) | 4000; (Storage) 12000 |
|---|---|
| Cable Tests | Measures length, verifies wiremap, identifies remote ID locators, and detects Ethernet ports. MicroScanner PoE also shows HIGH Ω when the resistance of the cable is more than 12.5 Ω. Displays results on one screen. |
| Cable Types Tested | Twisted pair: UTP, FTP, SSTP |
| Dimensions (inch) | 3x6.4x1.4 |
| Display | Monochrome LCD with backlight |
| EMC | IEC 61326-1 |
| Ethernet Port Detection | (MicroScanner PoE) Detects the advertised speed of 802.3 Ethernet ports with speeds of 10 Mbps, 100 Mbps, 1 Gbps, 2.5 Gbps, 5 Gbps, and 10 Gbps. |
| Length Test Range/Resolution (m) | 460/0.3 |
| Length Test Typical Accuracy (m) | ± 4% or 0.6 whichever is greater. NVP uncertainty is an additional error |
| Operating Relative Humidity (%RH without Condensation) | 90 (10 to 35°C); 75 (35 to 45°C) |
| Operating Temperature (°C) | 0 to 45 |
| PoE | (MicroScanner PoE) Solicits and detects the presence of 802.3af, at, bt, and UPOE (Cisco's Universal Power over Ethernet) compatible PoE devices |
| Power Battery Type | 2 AA (NEDA 15A, IEC LR6) alkaline batteries |
| Safety | IEC 61010-1 3rd Edition |
| Shock and Vibration | Random, 2g, 5Hz-500Hz (Class 2); 1m drop test with and without wiremap adapter attached |
| Storage Temperature (°C) | -20 to +60 |
| Test Connectors | Shielded 8-pin modular jack accepts 8-pin modular (RJ45) and 4-pin modular (RJ11) plugs. |
| Tone | Generates IntelliTone and normal analog toning signals |
| Wiremap Test | Detects single-wire faults, shorts, miswires, split pairs, and up to seven far-end adapter IDs. The wiremap is drawn with proportional length to visually indicate the approximate location of faults. |
