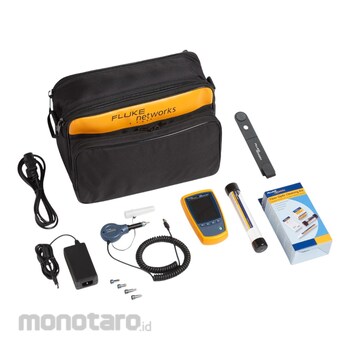

FLUKE Networks Fiber Optic Inspection Camera with Cleaning Supplies
#Grup produk P111160794
Spesifikasi
| Altitude (m) | (Operating) 4000; (Storage) 12000 |
|---|---|
| Battery Life (hour) | 3 (Continuous probe use); 6 (Typical probe use) |
| Camera Type | 5 Megapixel 1/4-inch CMOS sensor |
| Dimensions (inch) | 5.5x3.2x1.5 |
| Display | 3.2 inch TFT LCD, 320 x 240 |
| Endface Illumination | Coaxial blue LED |
| Field of View (µm) | 610x460 |
| Frames per Second | ≥12 |
| Input | USB 2.0, Type A |
| Light Source | LED |
| Light Source Life (hour) | >100000 |
| Magnification (x) | 1, 2, 4 |
| Minimum Charging Time (hour) | 4 |
| Output | Video output through USB 2.0 interface |
| Port Illumination | 2 white LEDs |
| Power | Supplied through the USB interface |
| Power Adapter | (Input) 100 to 240 VAC±10%, 50/60Hz; (Output) 6 VDC, 3 A maximum Class II |
| Resolution (µm) | 1 |
| Shock | 1 meter drop test |
| Vibration | 2g, 5Hz to 500Hz |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Also includes fiber end face cleaning kit- High resolution end face images on a large screen
- Use in dark patch panels with PortBright illumination built into the probe
- Auto-focus instead of a traditional manual focus ring that is difficult to hold and adjust
- Small probe gets into tight patch panels
- Magnetic Strap attachment allows technicians to keep their hand's free and their tester safe from potential drops and accidents with its strong rare earth magnet
