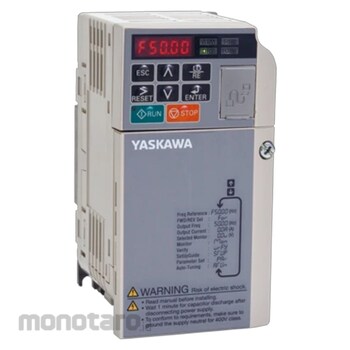

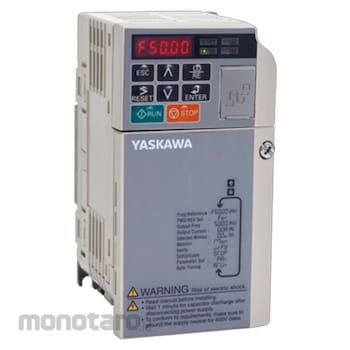

Yaskawa Compact AC Drive Inverter V1000 Series
#Grup produk P111158595
Spesifikasi
| Analog Input | 2 |
|---|---|
| Analog Output | 1 |
| Cooling Method | Coldplate, Air cooling |
| Dimensions (HxWxD) (mm) | 140 x 140 x 247 |
| Enclosure | IP20/UL Type 1 |
| Input Power Phases | 3-phase |
| Input power supply (V) | 400 |
| Max. Altitude (With Derating) (m) | 3000 |
| Max. Altitude (Without Derating) (m) | 1000 |
| Max. Humidity (Non-Condensing) (%) | 95 |
| Maximum Ambient Temperature (°C) | 40 |
| Maximum Applicable Motor Power (Heavy Duty) (kW) | 7.5 |
| Maximum Applicable Motor Power (Normal Duty) (kW) | 11 |
| Minimum Ambient Temperature (°C) | -10 |
| Motor Type | Permanent magnet motor, Induction motor |
| Overload Tolerance (HD) (%) | 150 for 60 s |
| Overload Tolerance (ND) (%) | 120 for 60 s |
| Rated Output Current (HD) (A) | 18 |
| Rated Output Current (ND) (A) | 23 |
| Standards Compliance | cUL, CE, RoHS, UL, UKCA |
