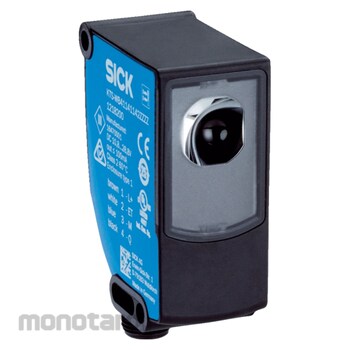

SICK Contrast Sensors
#Grup produk P111157976
Spesifikasi
| Current Consumption (mA) | < 100 |
|---|---|
| Device Type | Easy Teach |
| Dimensions (WxHxD) (mm) | 26 x 62 x 47.5 |
| Housing Design | Middle |
| Jitter (µs) | 10 |
| Light Emission | Long side of housing |
| Light Source | LED, RGB |
| Light Spot Direction | Vertical |
| Light Spot Size (mm) | 1.2 x 3.9 |
| Output Current Imax (mA) | 100 |
| Output Function | Light/dark switching |
| Response Time (µs) | 20 |
| Ripple (Vpp) | ≤ 5 |
| Sensing Distance (mm) | ≤ 13 |
| Sensing Distance Tolerance (mm) | ± 3 |
| Supply Voltage (V DC) | 10.8 to 28.8 |
| Switching Frequency (kHz) | 25 |
| Switching Output | Push-pull: PNP/NPN |
| Teach-In Mode | 2-point teach-in |
| Wave Length (Nm) | 470 (Blue), 525 (Green), 625 (Red) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
