Schneider Power Contactor
#Grup produk P111157897
Spesifikasi
| Ambient Air Temperature for Operation (°C) | -25 to 55 |
|---|---|
| Ambient Air Temperature for Storage (°C) | -40 to 80 |
| IP Degree of Protection | IP2X conforming to VDE 0106 |
| Maximum Operating Rate (cyc/hour) | 1200 |
| Mechanical Durability (cycles) | 500000 |
| Mounting Location | Front side |
| On-load factor (%) | 10 |
| Power Required (W) | 30 for DC circuit |
| Power required (VA) | 25 for AC circuit |
| Product Certifications | UL, CSA |
| Protective Treatment | TH conforming to IEC 60068 |
| Rated Insulation Voltage (V) | 690 conforming to IEC 60947-5-1 |
| Tripping Control | Electrical, Manual |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

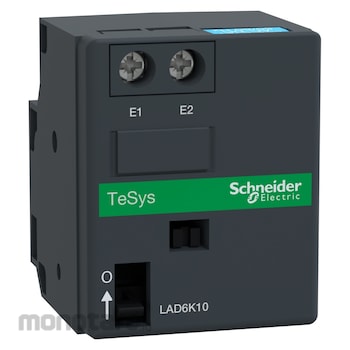

TeSys Deca mechanical latch block, for LC1D09-D38, LC1DT20...DT40, LC1D40A...D80A 3P, LC1DT60A...DT80A 4P contactors. Electrical latching and unlatching is performed applying a 220-240V control voltage pulse (> 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Fitur
- Membantu menghemat konsumsi koil contactstor dan mengurangi jejak karbon- Desain tambahan depan memastikan fleksibilitas produk
- Instalasi mudah tanpa memerlukan alat apa pun
- Koneksi fleksibel dengan sekrup multi-standar
- Perlindungan listrik tingkat IP2X
