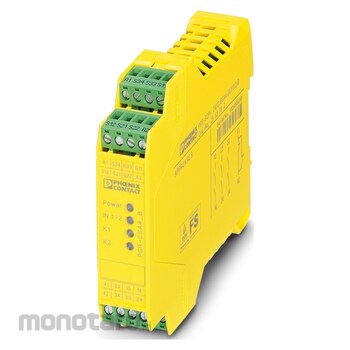

Phoenix Contact Relay
#Grup produk P111157772
Spesifikasi
| Dimensions (HxWxD) (mm) | 99 x 22.5 x 114.5 |
|---|---|
| Housing Material | Polyamide |
| Input Voltage Range (UN Reference) | 0.85 to 1.1 |
| Inrush Current (A/ms) | < 3.5 (Δt = 3 ms at US), < 100 mA (Δt = 500 ms, with Us/Ix at S12), > -100 mA (Δt = 300 ms, with Us/Ix at S22), < 6 mA (with Us/Ix to S34) |
| Max. Permissible Overall Conductor Resistance (Ω) | approx. 50 (Input and start circuits at US) |
| Maximum Power Dissipation (W) | 16.44 (US = 26.4 V, IL² = 72 A², PTotal max = 2.04 W + 14.4 W) |
| Nominal Operating Mode | 100% operating factor |
| Operating Voltage Display | Green LED |
| Power Consumption at US (W) | typ. 1.68 |
| Rated Control Circuit Supply Voltage (V DC) | 24 (-15 % / +10 %) |
| Rated Control Supply Current (mA) | typ. 70 |
| Rated Insulation Voltage (V) | 250 |
| Rated Surge Voltage/Insulation | See section “Insulation coordination” |
| Recovery Time (s) | 1 (after safety function), < 1 (boot time) |
| Status Display | LED (green) |
| Typical Input Current at UN (mA) | 70 (DC at US) |
| Typical Release Time (ms) | 20 (via sensor circuit), 45 (via A1) |
| Typical Response Time (ms) | 150 (automatic start) |
| Typical Starting Time with US (ms) | 250 (when controlled via A1) |
| Voltage at Input/Start and Feedback Circuit (V DC) | approx. 24 |
