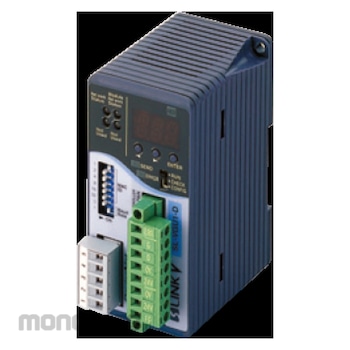

Panasonic Gateway Controller
#Grup produk P111157693
Spesifikasi
| Allowable Through Current (A) | 7 |
|---|---|
| Ambient Humidity (%) | 10 to 90 (Operating), 10 to 90 (Storage) |
| Ambient Temperature (°C) | 0 to +55 (Operating), -20 to +70 (Storage) |
| Current Consumption (mA) | 300 or less |
| DeviceNet Side: Address Setting | 0 to 63 (set by address setting switch) |
| DeviceNet Side: Compatible Network | DeviceNet Specifications Release 2.0 |
| DeviceNet Side: Transmission Cable | Exclusive DeviceNet cable |
| DeviceNet Side: Transmission Protocol | Poll, Change of State, Cyclic |
| DeviceNet Side: Transmission Speed (kbps) | 500 (100m), 250 (250m), 125 (500m) |
| Material | Enclosure: ABS |
| S-LINK V Side: Connected Node No. | 256 nodes max. |
| S-LINK V Side: Error Output | NPN open-collector transistor |
| S-LINK V Side: I/O Combination (units of 32) | 32 Nos. per unit set |
| S-LINK V Side: I/O Points | 512 points max. |
| S-LINK V Side: Refresh Time (ms) | A mode: 0.29 to 10.32, B mode: 1.18 to 41.29, C mode: 4.70 to 165.15 |
| S-LINK V Side: Total Wiring Length (m) | A mode: 100, B mode: 400, C mode: 1600 |
| S-LINK V Side: Transmission Cable | Exclusive 4-core flat cable (0.5mm²) or Conductor cross-section area 0.3 to 2.0mm² 4-core VCTF cable |
| S-LINK V Side: Transmission Distance (m) | A mode: 50, B mode: 200, C mode: 800 |
| S-LINK V Side: Transmission Speed (kbps) | A mode: 110, B mode: 27.5, C mode: 6.9 |
| Supply Voltage (V) | 24 |
