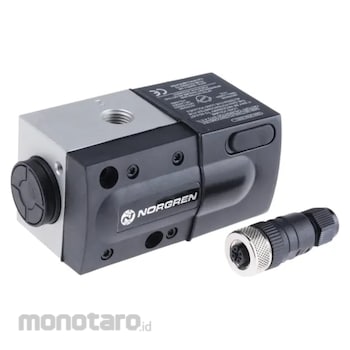

NORGREN Valve Electronic Control
#Grup produk P111157550
Spesifikasi
| Actuation Type | Pilot/Spring |
|---|---|
| Body Material | Aluminium |
| Connection Port Thread (G) | 1/4 |
| Function | 3/2 |
| Manufacturer Series | VP50 |
| Maximum Flow Rate (NL/min) | 1400 |
| Maximum Operating Pressure (bar) | 14 |
| Maximum Operating Temperature (°C) | 50 |
| Minimum Operating Pressure (bar) | 2 |
| Minimum Operating Temperature (°C) | 0 |
| Mounting Style | Manifold |
| Number of Ports | 3 |
| Number of Positions | 2 |
| Power Consumption Solenoid (W) | 1 |
| Solenoid Fitted | Yes |
| Solenoid Voltage (V dc) | 24 |
| Thread Size (in) | 1/4 |
| Thread Standard | G |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Let your system steam ahead with this pneumatic solenoid valve from IMI Norgren. Featuring 3-way proportional pressure control valves, it's designed to be used with industrial applications that need fast response times and high flow rates of up to 1400Nl/min. When an electrical current is sent to the fitted solenoid, the valve is opened precisely and efficiently. Settings are fully adjustable to suit your specific needs and manifold mounting compatibility takes the pressure off the job of installation.
Feature
• Operating temperature range of 0°C to +50°C makes it suitable for industrial use• IP65-rated for comprehensive protection from dust and water jets
• Pilot spool valve uses air pressure to control operation, saving energy and labour
• 3/2 port suitable for blow-off and pressure release
