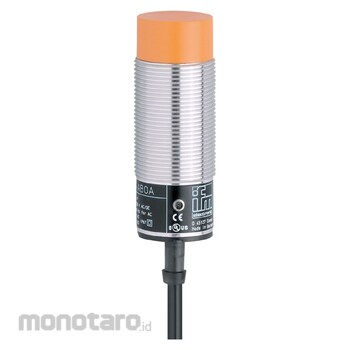

IFM Electronic Inductive Proximity Sensor
#Grup produk P111157356
Spesifikasi
| Dimensions (mm) | M30 x 1.5 / L = 81 |
|---|---|
| Display - Switching Status | 1xLED, yellow |
| Housing Type | Threaded |
| Material | Brass nickel-plated; sensing face: PBT |
| Max. Leakage Current (MA) | 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) |
| Max. Voltage Drop Switching Output AC (V) | 6.5 |
| Max. Voltage Drop Switching Output DC (V) | 6 |
| Minimum load Current (mA) | 5 |
| Mounting Type | Non-flush mountable |
| Operating Voltage (V) | 20 to 250 AC/DC |
| Output Function | Normally open |
| Permanent Current Rating of Switching Output AC (mA) | 250; (350 at 50°C) |
| Permanent Current Rating of Switching Output DC (mA) | 100 |
| Protection Class | II |
| Reverse Polarity Protection | No |
| Sensing Range (mm) | 15 |
| Short-time Current Rating of Switching Output (mA) | 2200; (20 ms / 0.5 Hz) |
| Switching Frequency AC (Hz) | 25 |
| Switching Frequency DC (Hz) | 50 |
| Thread Designation (mm) | M30x1.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Ulasan Produk
Tidak ada ulasan
Buka WhatsApp
