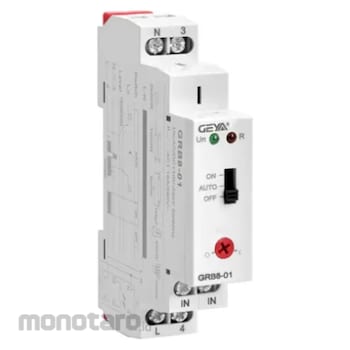

Geya Twilight Switch
#Grup produk P111157295
Spesifikasi
| Burden (VA) | Max 2 |
|---|---|
| Delay Time (minute) | 2 |
| Electrical Life (AC1, Operations) | 1x10⁵ |
| Frequency (Hz) | 50/60 |
| Function | Twilight switch |
| Illumination Range (Lx) | 1-100 |
| LED Indication (Supply/Output) | Green/Red |
| Mechanical Life (operations) | 1x10⁷ |
| Min. Breaking Capacity (DC, mW) | 500 |
| Mounting Type and DIN Rail Standard | DIN rail, EN/IEC 60715 |
| Operating Modes | ON-AUTO-OFF |
| Operating Temperature (°C/°F) | -20 to +55/-4 to 131 |
| Output Type and Current Rating (A, AC1) | 1xSPDT, 16 |
| Protection Degree (Front/Terminals) | IP40/IP20 |
| Rated Supply Voltage (VAC) | 110-240 |
| Sensor Tolerance (%) | ±35 |
| Storage Temperature Range (°C/°F) | -35 to +75/-22 to 158 |
| Supply Terminal | L-N |
| Supply Voltage Tolerance (%) | -1.5 |
| Switching Voltage (VAC/VDC) | 250/24 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Function Features - Serves to control lights on the basis of ambient light intensity.
- Level of ambient intensity is monitored by an external sensor and output is switched according to set level on the device.
- Control input for additional control.
- Universal supply AC 110V- 240 V.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.
