Space and resource saving.
Improved corrosion resistance and durability.
For gases.
attribute :
Secondary pressure (MPa) : B: 0.1 to 0.25
Minimum Differential Pressure (MPa) : 0.05
Yoshitake Pressure Reducing Valve GD-41G
#Grup produk P111154632
Spesifikasi
| Primary Side Suitable Pressure (MPa) | 2 |
|---|---|
| Secondary Side Adjustment Pressure Range (MPa) | B: 0.1 to 0.25 |
| Type | Direct acting type |
| Body Material | SCS14A |
| Compatible Fluids | Air, carbon dioxide, nitrogen gas |
| Connection | JIS Rc |
| Connection Method | Screw-in type |
| Cv value | 0.6 |
| Diaphragm Material | Heat-resistant synthetic rubber & PTFE (PTFE pasted on liquid contact parts) |

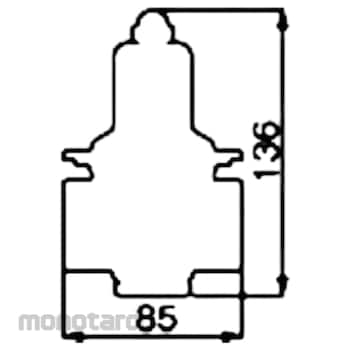

| Dimension H (mm) | 136 |
| Dimension L (mm) | 85 |
| Fluid Used | Air/carbon dioxide/nitrogen gas |
| Material Valve Body and Valve Seat | Special FKM/SCS |
| Maximum Reduction Ratio | 20:1 |
| Maximum Temperature (°C) | 90 |
| Nominal Diameter A | 20 |
| Nominal Diameter B | 3/4 |
| Operating Temperature Range (°C) | 90 |
| Primary Pressure (MPa) | 2 or less |
| format | Direct acting type |
