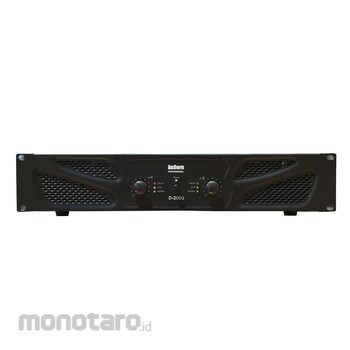

auBern Power Amplifier
#Grup produk P111135716
Sebelum PPN:
Rp9.599.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Control Features | Power switch and Gain control |
|---|---|
| Crosstalk (dB) | 73/-57 |
| Damping Factor | > 200 (8Ω, 20Hz-400Hz) |
| Dimension (WxHxD) (mm) | 482x89x330 |
| Frequency Response (Hz) | 20-20K (1W), ±1dB |
| Front Panel indicator | Power, signal, Clipping, protection LED lamp |
| IMD (%) | 0.35 (60Hz-7KHz, output to -30dB) |
| Input Connector | One balance XLR, one unbalanced RCA |
| Input Impedance (rated) (Ω) | 20K/ 10K (balanced/Unbalanced) |
| Input sensitivity (V) | 0.775/1.4 (rated power 8Ω) |
| Output connector | 4-POLE Speakon and a pair of terminals |
| Power Supply (V/Hz) | 250~230/50-60 (Plug: 10A) |
| Protection | Short circuit, Overload, Overheating, Switching surge, Wireless interference |
| Rear Panel Features | Stereo, Parallel, Bridge mode select, Input sensitivity options |
| SNR (dB) | 100 (20Hz-20KHz, Rated output power as a reference) |
| Switching Rate (V) | > 10/US |
| THD (%) | <0.5, 20Hz-20KHz |
| Voltage Gain (dB) | 33 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
- Professional Stereo 2 Channel power Amplifier, All Models in the series are powerful, rugged and reliable. They identical except for Output Power. Have 3 Mode/Separate Speaker Output : 80Ω, 40Ω & Bridge, (can be Stereo, Parallel, Mono & Bridge Mode).- This series Built-in RCA & XLR for Connector Input, with selectable input Sensitivity: 0.775V and 1.4V and Speaker Terminal/Binding Post for output Connector.
- Have 2 Independent Gain control Knobs, 1 Power Switch & 1 Power Indicator, and Protection against Short Circuit, No Load, Switch Noise, Radio Frequency interference protection circuit.
