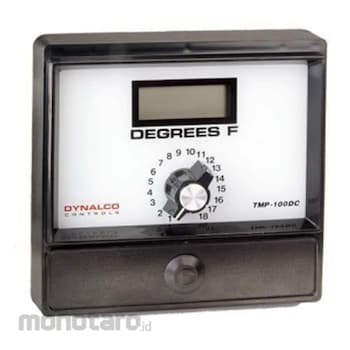

TMP-100DC
DC Powered
Digital Pyrometer
The TMP-100DC monitors the temperature of any 18 points in any process or system such as engines, factories, and mills
Sensor:
- Thermocouples: Integral cold junction compensation. Thermocouple extension wire resistance of up to 100Ω introduces less than 1º error. Open sensor indicated by a number 1 in the thousands column, all other digits blanked.
- RTDs: Accepts 2-wire RTDs only. Use with heavy copper extension leads to minimize error, i.e., 16 AWG for up to 50 feet, 14 AWG to 100 feet.
Dynalco Thermocouple Input Gauges
#Grup produk P111130845
Spesifikasi
| Current (mA) | 6 dc typical, 10 maximum |
|---|---|
| Digital Readout (°) | With 1 Resolution |
| Display | 3-1/2 digit (-1999 to +1999), 0.5\" high digits, liquid crystal display, 1° increments.Brightness increases with ambient light (no outdoors fadeout). |
| Environment Maximum Effect On Readout (%) | 0.25 |
| Environment Temperature (°C) | -18 to +74 |
| Environment Temperature (°F) | 0 to +165 |
| Selector Switch | Two-pole, 18-position, double gold plating of contacts |
| Sensor | Must be grounded if dc supply is grounded |
| Sensor Type | J (Iron-Constantan) |
| Temperature Range (°F) | -50 to +1500 |
| Voltage (V) | 24 DC Systems |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Digital readout with 1° resolution.- Heavily gold plated selector switch for long life, trouble-free operation.
- Fits existing cutouts and mounting holes of other popular pyrometers.
- No compensation for lead lengths or lead resistances required. Use inexpensive small gauge thermocouple extension wire to save cost and space.
- Fully gasketed; rugged construction.
- Readout unaffected by power line noise and spikes.
- Continuous readout.
