Sheathed thermocouples have a thermocouple wire inserted inside a metal protective tube (sheath) made of stainless steel or other material, and are sealed and filled with inorganic insulating material (high-purity magnesium oxide MgO) powder. They have
excellent insulation and airtightness, and are extremely durable even when used continuously for long periods of time at high temperatures or in a variety of hostile atmospheres.
specification
Wire diameter: 15% or more of the metal sheath outer diameter, bending radius: 2 to 3 times or more of the sheath outer diameter, insulator: high-purity magnesia MgO

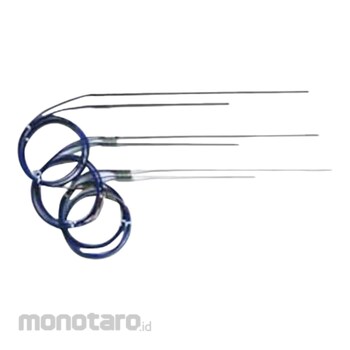

CHINO Sheathed Thermocouple Headless Type
#Grup produk P111126152
Spesifikasi
| Wire Type | K |
|---|---|
| Class | JIS Class 2 |
| Sheath Outer Diameter (mm) | 1.6 |
| Wall Thickness | At least 10% of the metal sheath outer diameter |
| Material | SUS316 (protective tube) |
| Protection Tube Length L (mm) | 100/300/500/1000 |
| Compensating Wire | WXJ (glass wool braided coating) 2m included |
| Length (mm) | 100 |
| Model | SCHS1-0, K, 0100, 61, 32, WXJ, 002, Y40 |
| Normal Temperature (°C) | 650 (limit) |
| Shape | Sealed non-grounded type (tip) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Image on this page only as Representative Image, Please check the specifications of each model number for detailsUlasan Produk
