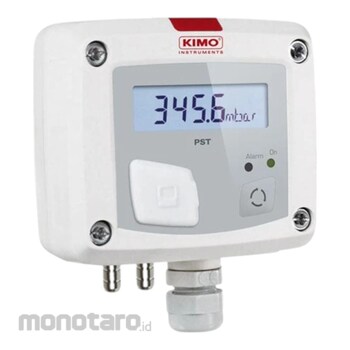

KIMO Instruments Pressostat Model PST
A manostat is a pressure gauge which has a switch inside its casing. At a selected pressure the switch activates an electrical contact and stops the machine on which it is wired. Kimo's PST is used to control pressure.
KIMO Pressure Transmitter Pressostat
#Grup produk P111080762
Spesifikasi
| Alarm | Red led in front and internal buzzer (70dB at 10cm) |
|---|---|
| Display | 1-line display |
| Ethernet Communication | No |
| Height (mm) | 109 |
| IP Protection | IP 65 |
| Length (mm) | 90 |
| Measuring Range (mbar) | PST 14: -500 to +500; and PST 15: -2000 to +2000 |
| Measuring Unit | Pa, PSI, kPa, mbar, hPa, inWg, mmH2O, mmHg, daPa |
| Measuring range (Pa) | PST 11: -100 to +100 with EV; PST 12: -1000 to +1000; PST 13: -10000 to +10000 |
| ModBus Network | No |
| Operating Temperature (°C) | Min : 0.00; Max : 50.00 |
| Parameter | Differential pressure |
| Power Supply (V) | 24ac/dc ±10% |
| Relay | 1 RCR relay 3A/230VAC |
| Standard | 2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage |
| Storage Temperature (°C) | Min : -10.00; Max : 70.00 |
| Width (mm) | 46 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- 10-digit LCD display- One RCR relay 3A/230Vac
- Red LED in front
- Software or DIP switch configuration
- Quick and easy mounting with the 1/4 turn system with wall-mount plate
