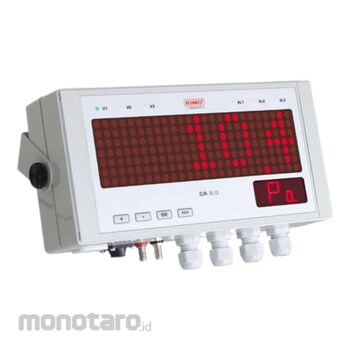

KIMO Instruments Multifunction Sensor with Large Electroluminescent Display Model CA 310
Kimo's CA 310 contains a multifunction sensor with interchangeable probes and a large display. It can measure three parameters (for example humidity, temperature and pressure).
KIMO Multifunction Sensor
#Grup produk P111080708
Spesifikasi
| Alarm | 3 visual and audible alarm |
|---|---|
| Display | 1-line display |
| Ethernet Communication | No |
| Height (mm) | 120 |
| IP Protection | IP 63 |
| Length (mm) | 240 |
| Measuring Unit | °C, % RH, Pa, ppm, m/s, hPa, mA, V, m³/h |
| ModBus Network | No |
| Operating Temperature (°C) | Min : -10.00; Max : 50.00 |
| Outputs | 3 x 0/4-20mA or 3 x 0-5/10V (4 wires) |
| Parameter | Air velocity, Airflow, Atmospheric pressure, CO, CO2, Current, Differential pressure, Humidity, Temperature, Voltage |
| Power Supply (V) | 24ac/dc or 100-240ac (Active) |
| Standard | 2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage |
| Width (mm) | 60.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Alternating display of one to three parameters- One input for an interchangeable probe
- Location for SPI-2 or MVA interchangeable board
- Three audible and visual (dual-color LEDs) alarms
- Three analogue outputs (4 wires) 0/5-10V or 0/4-20mA and three reverse relays
- Adjustment certificate
