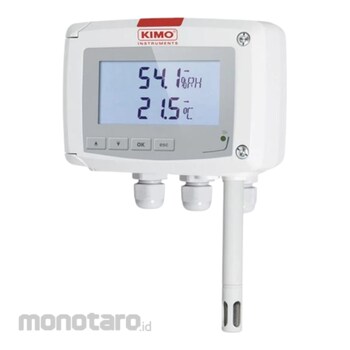

KIMO Instruments Humidity and Temperature Sensor Model TH 210-R
Kimo's TH 210-R measures humidity and temperature including 0 to 100%RH and -20 to +80°C (ambient model), -20 to +80°C (pc remote probe), and -40 to +180°C (stainless steel remote probe).
KIMO Humidity and Temperature Sensor
#Grup produk P111080665
Spesifikasi
| Display | No, 2-line display |
|---|---|
| Ethernet Communication | No |
| Height (mm) | 115 |
| IP Protection | IP 65 |
| Length (mm) | 125 |
| Measuring Range (%RH) | 0 to 100 |
| Measuring Unit | °F, °C, % RH, °C Tw, °Ctd, g/m³, g/kg, kj/kg |
| ModBus Network | No |
| Outputs | 2 x 4-20mA or 2 x 0-20mA or 2 x 0-5V or 2 x 0-10V (4 wires) |
| Parameter | Humidity, Temperature |
| Power Supply (V) | 24ac/dc or 100-240ac |
| Relay | 2 changeover relays 3A/230V |
| Standard | 2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage |
| Temperature Measurement Range (°C) | -20 to +80 (ambient model), -20 to +80 (pc remote probe), and -40 to +180 (stainless steel remote probe). |
| Width (mm) | 59.2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Stainless steel or polycarbonate probe- With or without 2-line 19-digits LCD display
- 0-5/10V or 0/4-20mA outputs
- Trend indicator
- Two relays
- Quick and easy mounting with the 1/4 turn system with wall-mount plate
