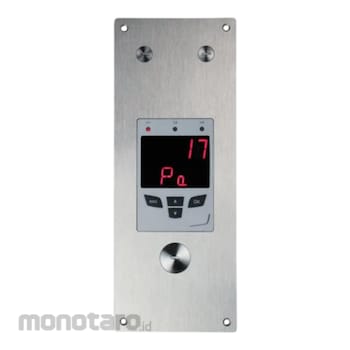

KIMO InstrumentsFlushmount Multifunction Pressure Sensor Model CPE 310-S / CPE 311-S
Kimo's CPE 310-S is a flushmount multifunction pressure sensor. It can display up to three parameters alternatively.
KIMO Flushmount Multifunction Pressure Sensor
#Grup produk P111080629
Spesifikasi
| Alarm | Buzzer (70dB at 10cm) / Blinking of the value |
|---|---|
| Display | 2-line display |
| Ethernet Communication | No |
| Height (mm) | 234 |
| IP Protection | IP 65 |
| Length (mm) | 92 |
| Measuring Unit | Pa, mbar, hPa, inWg, mmH2O, mmHg, daPa |
| Measuring range (Pa) | CPE 310-S: from -100 to +100 and CPE 311-S: from -1000 to +1000 |
| ModBus Network | No |
| Operating Temperature (°C) | Min : -10.00; Max : 50.00 |
| Outputs | 3 x 0/4-20mA or or 3 x 0-5/10V (4 wires) |
| Parameter | Air velocity, CO, CO2, Differential pressure, Humidity, Temperature |
| Power Supply (V) | 24ac/dc ±10% (active) |
| Standard | 2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage |
| Storage Temperature (°C) | Min : -10.00; Max : 70.00 |
| Width (mm) | 44 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Measures temperature, humidity, air velocity, CO, CO2- One input for probe
- Three visual and audible alarms
- Three analogue outputs 0-5/10V or 0/4-20mA
- Adjustment certificate
