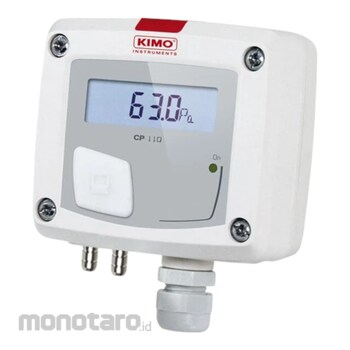

KIMO Instruments Differential Pressure Transmitter Model CP 110
The CP 111 / 112 / 113 measure differential pressure from -100/+100Pa to -10000/+10000Pa (according to models).
The CP 114 / 115 measures pressure from -500/+500mbar to -2000/+2000mbar.
KIMO Differential Pressure Transmitter
#Grup produk P111080601
Spesifikasi
| Display | No, 1-line display |
|---|---|
| Ethernet Communication | No |
| Height (mm) | 109 |
| IP Protection | IP 65 |
| Length (mm) | 90 |
| Measuring Range (mbar) | CP 114 / 115 : from -500/+500 to -2000/+2000 |
| Measuring Unit | inH2O, kPa, mbar, hPa, kPa, inWg, mmH2O, mmHg, daPa, psi |
| Measuring range (Pa) | CP 111 / 112 / 113 : from -100/+100 to -10000/+10000 |
| ModBus Network | No |
| Operating Temperature (°C) | Min : 0.00; Max : 50.00 |
| Outputs | 0-10V (Active) or 4-20mA (Active and Passive) |
| Parameter | Differential pressure |
| Power Supply (V) | 24ac/dc (Active) or 16/30dc (Passive) |
| Standard | 2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage |
| Storage Temperature (°C) | Min : -10.00; Max : 70.00 |
| Width (mm) | 46 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Configurable intermediary ranges and software or DIP switch configuration- 0-10V or 4-20mA output
- With or without 10-digits LCD display
- "1⁄4 turn" system mounting with wall-mount plate
- Housing with simplified mounting system
- Solenoid valve for auto-calibration (only on CP111 model)
