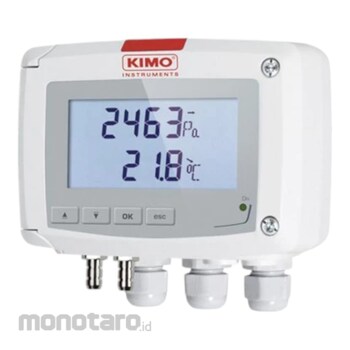

KIMO Instruments Differential Pressure and Temperature Sensor Model CP 210-R
The CP 210-R measures the differential pressure of air (and neutral gases), and is ideal for use in industrial and pharmaceutical applications.
KIMO Differential Pressure and Temperature Sensor
#Grup produk P111080586
Spesifikasi
| Display | No 2-line display |
|---|---|
| Ethernet Communication | No |
| Height (mm) | 115 |
| IP Protection | IP 65 |
| Length (mm) | 125 |
| Measuring Unit | °F, °C, Pa, kPa, mbar, hPa, inWg, mmH2O, mmHg, daPa |
| Measuring range (Pa) | CP 211: -100 to +100; CP 212: -1000 to +1000; and CP 213: -10000 to +10000 |
| ModBus Network | No |
| Operating Temperature (°C) | Min : -10.00; Max : 50.00 |
| Outputs | 2 x 4-20mA or 2 x 0-20mA or 2 x 0-5V or 2 x 0-10V (4 fils) |
| Parameter | Differential pressure Temperature |
| Power Supply | 24ac/dc or 100-240ac |
| Relay | 2 RCR relay 3A/230VAC |
| Standard | 2011/65/EU RoHS II, 2012/19/EU WEEE, 2014/30/EU EMC, 2014/35/EU Low Voltage |
| Storage Temperature (°C) | Min : -10.00; Max : 70.00 |
| Width (mm) | 59.2 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Solenoid valve for auto-calibration (CP211/212) 0-5/10 V or 0/4-20 mA outputs - Two relays Automatic autozero
- Quick and easy mounting with the 1/4 turn system with wall-mount plate
