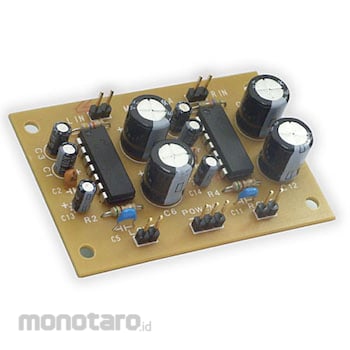

The popular IC stereo amplifier board / MA-2380A is now available as a [kit].
It is a stereo power amplifier kit equipped with two standard audio power amplifier ICs "LM380". The maximum output is 2.2W x 2 (at 12V 4Ω load), and it can also be used as an external amplifier for portable audio.
Two detent volumes are also included.
Wonder Kit Stereo Power Amplifier Kit
#Grup produk P111045006
Spesifikasi
| Board Dimensions (WxDxH) (mm) | 65x45x16 |
|---|---|
| Gain (dB) | Voltage/about 50 times (+34) |
| Included Accessories | 2 detent volumes |
| Input | Line level x 2 |
| Maximum Output Power (W) | About 2.4 (at 12V4Ω load), about 1.5 (at 12V8Ω load) |
| Operating Current (mA) | Approx. 700 (at 12V 4Ω load), Approx. 400 (12V 8Ω load) |
| Output | Speaker (4-16Ω compatible) x 2 |
| Power Supply Voltage (V) | DC12 (DC10-12 is possible) |
| Type | Craft kit |
