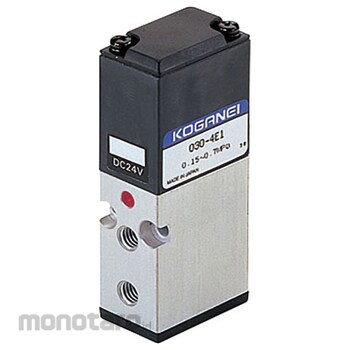

KOGANEI Solenoid Valve 030 Series Internal Pilot Type
#Grup produk P111042160
Spesifikasi
| Assured Pressure Resistance (MPa) | 1.05 |
|---|---|
| Button Specifications | Non-lock type (manual) |
| Lubrication | Unnecessary |
| Mounting Side | Freedom |
| Number of Ports | 3 port |
| Operating Pressure Range (MPa) | 0.15-0.7 |
| Operating Temperature Range (°C) | (Atmosphere and fluid used) 5-50 |
| Piping Connection Size | M5x0.8 |
| Position | 2 position |
| Response Time (s) | (When ON/OFF) 0.01/0.025 or less |
| Shock Resistance (m/s²) | 117.7 |
| Suitable fluid | Air |
| Terminal Connection | Grommet type |
| Type of Acting | Internal pilot type |
| Withstand Pressure (MPa) | 1.05 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Suitable for drive control of all small actuators such as double acting and single acting cylinders with a cylinder diameter of 6 to 20 mm.
