It does not require coupling and can be mounted in a shape that fits the device / compact design is possible
measurement

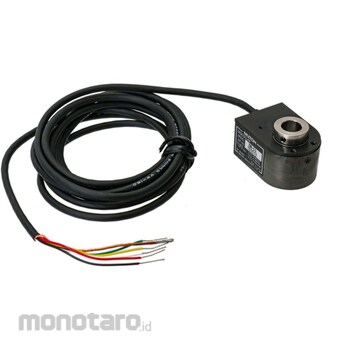

Mutoh Rotary Encoder
#Grup produk P111033506
Spesifikasi
| Allowable Rotation Speed (rpm) | 3000 |
|---|---|
| Cable | Output/2mΦ3 (tip untreated) |
| Current Consumption (mA) | less than 50 |
| Inner Diameter to Install (Φmm) | (Axis) 8 |
| Number of Pulses | 50 |
| Operating Humidity Range (%RH) | 35 to 90 (no condensation) |
| Operating Temperature Range (°C) | 0 to 45 |
| Operation Mode | Open collector |
| Output Capacity | Residual voltage 0.7V or less, sink current 30mA or less |
| Output Phase | A, B, Z phase |
| Output phase difference | 90°±45° |
| Power Input (V) | DC4.5-13 |
| Protection Class | IP50 |
| Shock Resistance (m/s²) | (Durability) 490 (50G) |
| Starting Torque (N m) | 5x10⁻³ |
| Storage Temperature Range (°C) | -20-80 |
| Transmission distance (m) | 15 or less |
| Type | For measuring |
| Vibration Resistance | 30 minutes at 39.2m/s² (4G) |
