Complete measures to prevent flux from rising.
The pin header is a low profile type with a height of 9.2 mm. The distance between the boards when stacked is 12.2 mm.
Computers, terminal equipment, various electronic equipment, OA equipment, etc.

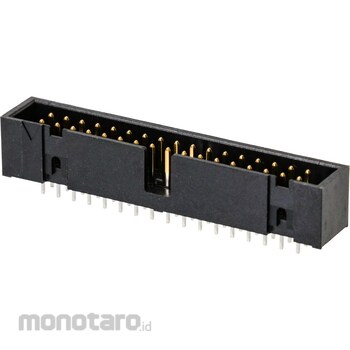

HRS (HIROSE ELECTRIC) Ribbon Cable Connector
#Grup produk P111032640
Spesifikasi
| Color (insulator) | Black |
|---|---|
| Contact Resistance (miliΩ) | 15 or less (0.1A) |
| Dimension A (mm) | 50.68 |
| Dimension B (mm) | 47.98 |
| Dimension C (mm) | 40.64 |
| Dimensions d (mm) | 4.1 |
| Heat Resistance | Automatic soldering: 260°C, 10 seconds; Hand soldering: Soldering iron temperature: 300°C, 3 seconds; There should be no melting of the resin parts that would affect performance |
| Insulation Resistance (MΩ) | 1000 or more (DC500V) |
| Material (Insulator) | PBT resin (UL94V-0) |
| Moisture Resistance (MΩ) | Insulation resistance 1000 or more (Temperature 40 ± 2°C, Humidity 90 ~ 95%, leave for 96 hours) |
| Number of Poles | 34 |
| Operating Humidity Range (%RH) | 40-80 |
| Operating Temperature Range (°C) | -55 to +85 (including temperature rise when energized) |
| Rated Current (A) | 1 |
| Rated Voltage (V) | AC200 |
| Storage Humidity Range (%RH) | 40-70 |
| Storage Temperature Range (°C) | -10-+60 |
| Terminal Shape | Straight type |
| Vibration Resistance | Half amplitude 0.75mm, 3 directions 2 hours (10 to 55Hz) (no electrical interruption for 1μs or more) |
| Withstand Voltage (V) | 650 VAC (rms) energized for 1 minute (no leakage or breakdown) |
