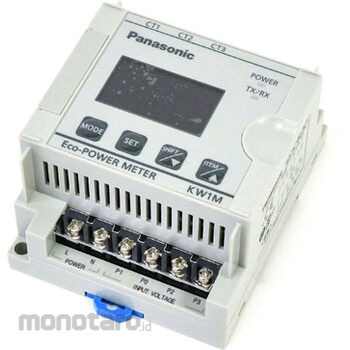

Panasonic KW1M Eco Power Meter Standard Thailand
#Grup produk P111005424
Spesifikasi
| Allowable Voltage Range (V) | 85 to 264 AC (85% to 110% of the rated operating voltage) |
|---|---|
| Ambient Humidity to Use (%RH) | 30 to 85 (20°C, no condensation) |
| Memory System | EEPROM (over 100,000 rewrites) |
| Operating Ambient Temperature (°C) | -10 to +50 (storage temperature is -25 to +70) |
| Operating Voltage (V) | 100-240 AC |
| Outer Dimensions (mm) | 75x90x50 |
| Rated Frequency (Hz) | 50/60 shared |
| Rated Power Consumption (VA) | 6 (AKW1110 (B)) (AC240V at 25° C); 8 (AKW1111 (B)) (AC240V at 25° C) |
| Shock Resistance | 294m/s2 or more (5 times each in up/down, left/right, front/rear directions) |
| Type of Display | Backlit LCD Upper row: Green 4 digits 16 segments Character height: 6.5mm Lower row: Amber 6 digits 7 segments Character height: 7.5mm |
| Vibration Resistance | 10 to 55Hz (period 1 minute) Single amplitude: 0.375mm (vertical, left and right, front and rear directions: 1 hour) |
| Voltage (V) | Input measurement: 100/200 AC system, 400 AC system |
| Withstand Voltage (V) | Between insulated circuits: 2000V/1min |
