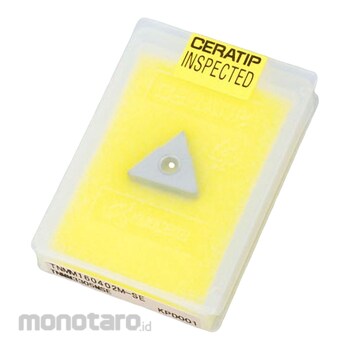

KYOCERA Chip TNMM-SE
#Grup produk P110972101
Spesifikasi
| Clearance Angle (°) | 0 (zero) |
|---|---|
| Corner Height Tolerance (mm) | ±0.08-±0.18 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting area | High speed machining |
| Dimension A (mm) | 9.525 |
| Dimensions d (mm) | Φ3.81 |
| Dimensions t (mm) | 4.76 |
| Inscribed Circle Diameter (Φmm) | 9.525 |
| Material | KPD001 |
| Shape | Equilateral triangle 60° |
| Socket Shape | Cylindrical hole |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05-±0.13 |
| Type | Negative |
| With Or Without Hole | Yes |
