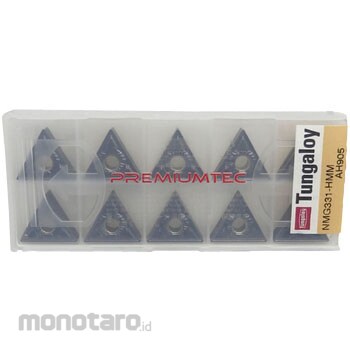

Tungaloy Chip TNMG-HMM
#Grup produk P110972086
Spesifikasi
| Blade Length l (mm) | 16.5 |
|---|---|
| Chip breaker | Both sides |
| Clearance Angle (°) | 0 (zero) |
| Corner Height Tolerance (mm) | ±0.08-±0.18 |
| Corner Radius (mm) | 0.4 |
| Cutting Blade Length (mm) | 16.5 |
| Cutting ap (mm) | 0.5-3.0 |
| Feed f (mm/rev) | 0.1-0.3 |
| Hole Diameter d1 (Φmm) | 3.81 |
| Inscribed Circle Diameter (Φmm) | 9.525 |
| Material | AH905 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Shape | Equilateral triangle 60° |
| Socket Shape | Cylindrical hole |
| Suitable For | M-class negative chip for turning |
| Thickness (mm) | 4.76 |
| Thickness Tolerance (mm) | ±0.13 |
| Tolerance of Inscribed Circle (mm) | ±0.05-±0.13 |
| With Or Without Hole | Yes |
