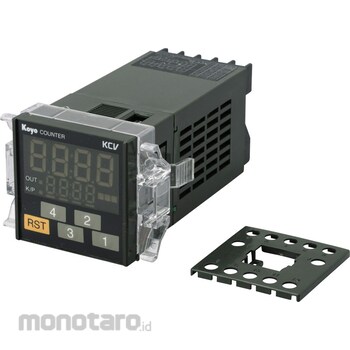

JTEKT Electronics (former Koyo Electronics Industries) Addition/Subtraction Type One-Stage Preset Counter KCV Series
#Grup produk P110957883
Sebelum PPN:
Rp3.199.900 - Rp4.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Character Height (mm) | 7 |
|---|---|
| Input Voltage (V) | L/0-3, H/7-30 |
| Number of Digits | 4 digits |
| Operating Ambient Temperature (°C) | -10-+50 |
| Output | 24V100mA/withstand voltage 35V/remaining voltage 1.5V or less |
| Output Contact | Non-contact output/NPN open collector output Contact output/1 transfer (1c) contact |
| Pattern Setting | 1-stage setting/with forecast output |
| Power Failure Memory | EEPROM rewrite count 100000 times or more Storage time/10 years |
| Protection Class | IP65 (front panel only) |
| Response Time (ms) | Counting prohibition input/(on delay/off delay) 0.1 External reset input/(on delay/off delay) 5 or less |
| Service Life | (Contact output) 100000 operations min./220 VAC 2 A, 200000 operations min./220 VAC 0.5 A, 200000 operations min./30 VDC 0.5 A |
| Setting Range | 0-9999 |
| Storage Temperature (°C) | -20 to +70 (but do not freeze) |
| Type | Preset |
| Type of Sign | For embedded installation only (terminal block connection) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
DIN48x48 compact body with easy-to-read large 2-color LED display and preset counter with extensive functions. By setting the forecast output value, you can set two levels of output: forecast output and preset output.
