Modbus has become a standard industrial communication protocol, and is now the most commonly available means of connecting industrial electronic devices. Modbus allows for communication between many devices connected to the same RS-485 network, for example, a system that measures temperature and humidity and communicates the results to a computer. Modbus is often used to connect a supervisory computer with a remote terminal unit (RTU) in supervisory control and data acquisition (SCADA) systems.
Product with RoHS Certificate

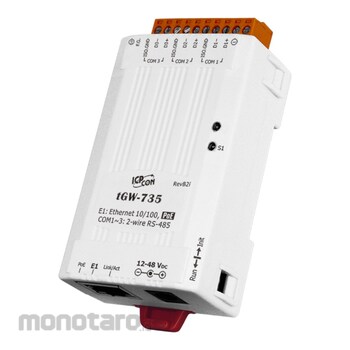

ICP DAS Tiny Modbus TCP to RTU/ASCII Gateway tGW-700 Series
#Grup produk P110947026
Sebelum PPN:
Rp2.799.900 - Rp3.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| COM Parts Data Bit | 5, 6, 7, 8 |
|---|---|
| COM Parts Stop Bit | 1, 2 |
| COM Ports Baud Rate (bps) | Max. 115200 |
| COM Ports Parity | None, Odd, Even, Mark, Space |
| CPU Module (bit) | 32 (ARM) |
| Casing Material | Plastic |
| Dimensions (WxHxD) (mm) | 52x95x27 |
| Ethernet Ports | 10/100 Base-TX, 8-pin RJ-45 x 1, (Auto-negotiating, Auto-MDI/MDIX, LED indicator); PoE (IEEE 802.3af, Class 1) |
| Humidity (%RH) | 10 to 90, non-condensing |
| Installation | DIN-Rail Mounting |
| Operating Temperature (°C) | -25 to +75 |
| Power Consumption @24VDC (A) | 0.07 |
| Powered from PoE | IEEE 802.3af, Class 1 |
| Powered from Terminal Block (VDC) | +12 to 48 |
| Storage Temperature (°C) | -30 to +80 |
