Completely oil-free.
Tube is PushOne connection.
Screw part is made of SUS304.
Double clean packaging.
Body and screw part rotate.

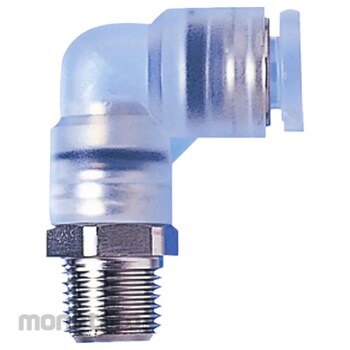

Nitta Chemifit C1S Series 90° Elbow
#Grup produk P110945277
Spesifikasi
| Tube Insertion Length F (mm) | 15 |
|---|---|
| Applicable Tube Outer Diameter (mm) | 6 |
| Thread Size | (T)R1/8 |
| Width Across Flats (H×Φ)(mm) | 12.0×13.0 |
| Maximum Operating Pressure (MPa) | 0.7 (at 20℃) |
| Dimension A (mm) | 8 |
| Dimension D1 (mm) | 5 |
| Dimension L1 (mm) | 18.9 |
| Dimension L2 (mm) | 25 |
| Dimension L3 (mm) | 25.4 |
| Dimensions d (mm) | 12.5 |
| Dimensions l4 (mm) | 31.5 |
| Fluid Used | Air (clean air), water (pure water) |
| Operating Temperature Range (°C) | (Air) -20℃ to +80℃, (Water) 0℃ to +80℃ |
| Shape (°) | 90 (Elbow) |
