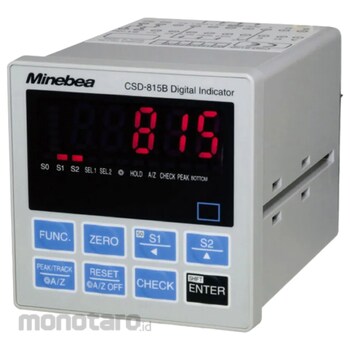

Minebea Mitsumi Digital indicator for Converter
#Grup produk P110945198
Spesifikasi
| Specification | CE mark compliant |
|---|---|
| Mounting Method | Panel Mounting |
| Display | Display frequency: 4 times/s (switchable between 20 times/s, 50 times/s, and 100 times/s) |
| Protection Rating | IP65 equivalent |
| A/D Sampling Time | 100 times/s |
| Display Color | Red 7-segment LED, character height 17 mm |
| Display Range | -99 999 to 99 999 |
| External Dimensions (WxHxD) (mm) | 96x96x129.5 (excluding protrusions) |
| Input Filters | 2 Hz, 10 Hz, 100 Hz, 2 kHz |
| Input Noise | ±0.6 μVp-p or less (with default digital filter and stabilization filter settings) |
| Input range | FS can be set with input of ±0.4 mV/V to ±3.1 mV/V (when bridge power supply is DC5 V) |
| Non-linearity | Display 0.01 %FS / Output 0.05 %FS |
| Number of Digits Displayed (digits) | 5 |
| Number of Outputs | Switchable between 4 times/s, 20 times/s, 50 times/s, and 100 times/s (synchronized with the display frequency) |
| Operating Humidity Range (%) | 85RH or less (no condensation) |
| Operating Temperature Range (°C) | -10 to 50 |
| Output Range | DC ±10 V Load resistance 5 kΩ or more (FS setting in function) |
| Power Consumption (V/A) | Approx. 9 (without optional accessories, at AC100 V), Max. approx. 18 (with optional accessories, at AC100 V to 240 V) |
| Power Supply Voltage (V) | AC100-240 (allowable range: AC85-264) 50/60Hz |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This is a digital indicator for 96mm x 96mm strain gauge transducers. CC-Link interface with peak hold function available.
Use
Zero tracking, digital filter, stabilization filter, HOLD target switching, sheet key lock, peak mode selection, analog output target switchingUlasan Produk
