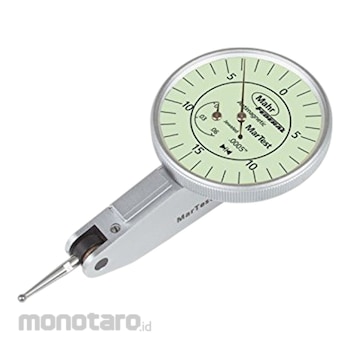

MAHR MarTest Dial Test Indicator
#Grup produk P110939355
Sebelum PPN:
Rp5.499.900 - Rp5.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Repeatability fw (inch) | 0.00012 |
|---|---|
| Measuring Range Inches | ±0.030 |
| Total Deviation Range fges (inch) | 0.0005 |
| Deviation Range fe (inch) | 0.0004 |
| Scale Diameter (inch) | 1.5 |
| Dial Color | Green |
| Figur on Dial Face | 15-0-15 |
| Measuring Force (N) | 0.15 |
| Measuring Value Hysteresis fu (inch) | 0.0002 |
| Partial Measuring Range ft (inch) | 0.0002 |
| Pointer Rotation (inch) | 0.03 |
| Stylus Length (mm) | 14.5 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Exclude Calibration CertificateFeature
Movement bearings are jeweled with 8 precious stones High contrast dial face is sealed with an O-Ring
Satin chrome finished housing with 3 integrated dovetails
Shockproofed mechanism
Anti magnetic version
Automatic matching to sensing direction, thus ensuring error-free reading
Double lever supported in ball bearings, overload protection provided by slip clutch
Contact point with carbide ball
Use
Measurement of concentricity; alignment; parallelism and flatnessCentering of bores and shafts
Parallel or perpendicular alignment of work pieces
