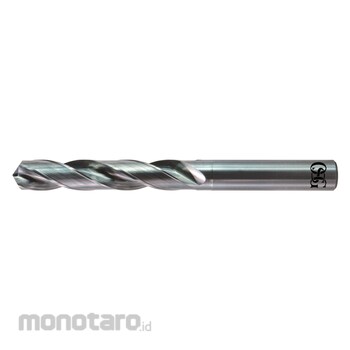

OSG Carbide Drill with Internal Coolant
#Grup produk P110917867
Kondisi Barang:
Spesifikasi
| Cutting Diameter Tolerance Specification | m7 |
|---|---|
| Cutting Direction | RH |
| Helix Angle (°) | 30 |
| Helix Direction | RH |
| Number of Flute | 2 |
| Point Angle - Degree (α) | 130 |
| Point Thinning | X Thinning |
| Shank Tolerance | h6 |
| SubstRate | Carbide |
| Surface Treatment | BRIGHT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
The HY-PRO CARB carbide drill series is an ideal blend of performance and cost-efficiency. HY-PRO CARB ALD is capable of stable chip formation & evacuation, and good quality holes over a wide range of feed rates, enabling high efficiency drilling in aluminum alloy and other non-ferrous materials.
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsFeature
Double MarginImproved stability & hole straightness.
Polished Flutes
Smooth chip evacuation, and less BUE at the cutting edge.
Straight Cutting Edge
Lower thrust force at higher feeds.
X-Thinning & R-Gash
Sharp & smoothcutting at the center.
