Sample entry and exit is via UNF 28 female threads and PTFE pipe connectors, 1 with a Luer Swagelok® fitting for sample application using a syringe. Sample may be syringed into or pumped through the tube as part of an automated sampling system. Due to the close proximity of the entry & exit ports, the 5mm tubes are supplied with fixed luer-taper nozzles.
Our polarimeter tubes are manufactured to the highest standards conforming to ICUMSA recommendations and are compatible with most makes of polarimeter. Tube ends are precision ground with windows made from specially selected low strain silica in order to achieve the highest accuracy optical rotation measurement across UV, Vis and NIR wavelengths.
- Precision engineered
- Suitable for ADP400 Series and ADP600 Series polarimeters

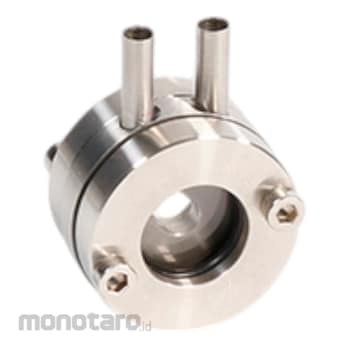

Bellingham + Stanley Low Volume Metal Polarimeter Tube
#Grup produk P110914329
Spesifikasi
| Collar Size (mm) | 30 (ICUMSA Standard) |
|---|---|
| End Cap Material | Stainless steel |
| Inlet/Outlet | Luer Taper |
| Internal Diameter (mm) | 8 |
| Length (mm) | 5 |
| Transmission (nm) | 300-900 |
| Tube Material | Stainless steel |
| Volume (ml) | 0.1 |
| Window Material | Silica |
