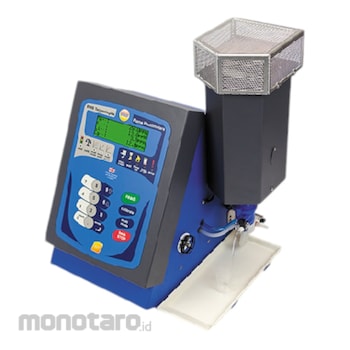

BWB Technology Flame Photometer

Since 2006 the BWB XP has been the company's flagship model and is used by delighted customers around the world.
The BWB XP is the first and only 5 channel flame photometer with simultaneous detection and display of all 5 elements.
The BWB XP was designed from the ground up, using new, innovative and modern technology to give unsurpassed levels of accuracy, usability and reliability while significantly reducing analysis time. Our customers do not need to waste valuable time changing filters and re-calibrating when a different measurement is required, as is a common requirement in all other Flame Photometer designs from 1951 to the present.
With clean lines and contemporary bright colour schemes, the XP looks exceptionally modern and will fit into any laboratory. The instrument has a large LCD display, which can be viewed easily from any angle.
Our metal casework provides a sturdy portable instrument and enables future recycling opportunities. ROHS compliant components and materials are used wherever possible.
The BWB Carbon Footprint is exceptionally low, in keeping with corporate objectives of being a responsible manufacturer.
Unlike other manufacturers who charge extra for vital accessories, BWB include everything required to use the product straight out of the box. Just add Gas!! (Propane, LPG or butane).
We also provide as standard, data sharing via USB from the BWB XP to your PC. This ties the output of the BWB Flame Emission Spectrometer (FES) to the Internet or your company intranet systems and facilitates Distributed Control which is vital for Multi-National companies, Universities and various Governmental agencies.
Included in the Box:
-PC leads USB for PC connectivity
-Power lead to suit region with 12vDC Power Adapter
-Gas hose
-Aspiration kit
-Digital manuals covering all aspects of the instrument
-Printed certificates of analysis for all provided fluids
-Digital material safety data sheets for all provided fluids
-The FP-PC software installation USB including a range of content and literature
-150mL BWB recommended cleaning solution
-150mL 10,000ppm Sodium Calibration Standard
-150mL 10,000ppm Potassium Calibration Standard
-150mL 10,000ppm Lithium Calibration Standard
-150mL 10,000ppm Calcium Calibration Standard
-150mL 10,000ppm Barium Calibration Standard
-500mL Diluent
-100mL Plastic conical flask with lid
-100 disposable sample cups
-1L De-ionised water
-2m Waste tube including anti-siphon ‘T’
-10x 10mL Stereological Pipettes
-10x 1mL Stereological Pipettes
Required desk space for Instrument
50cm (H) x 45cm (W) x 45cm (D)*
For Safety reasons the Flame photometer requires 1m of unobstructed space above to allow dissipation of heat from the chimney.
Optimal range
Single point calibration
Na 0.1 – 60ppm
K 0.05 – 100ppm
Li 0.05 – 50ppm
Ca 1.0 – 100ppm
Ba 1.6 – 100ppm
Multi Point Calibration
Na 0.1 – 1000ppm
K 0.05 – 1000ppm
Li 0.05 – 1000ppm
Ca 1.0 – 1000ppm
Ba 5.0 – 3000ppm
Limit of detection (LOD) and limit of quantification (LOQ)

LOD
Na – 0.03ppm
K – 0.02ppm
Li – 0.02ppm
Ca – 0.3ppm
Ba – 1.6ppm
LOQ
Na – 0.1ppm
K – 0.05ppm
Li – 0.05ppm
Ca – 1ppm
Ba – 5.0ppm
Interfaces
USB
0-2.5 volt output (based on sample concentration linked to element of users choice)
Optional 4-20mA output in place of the above
Optional integrated printer
.csv and .pdf generated reports and files via FP-PC software
Fuel requirement
Propane, Butane or Natural Gas* regulated to 19Bar. Flow rate of 0.4l/min
*with modifications. BWB Technologies recommends either Propane or Butane for optimum results.
