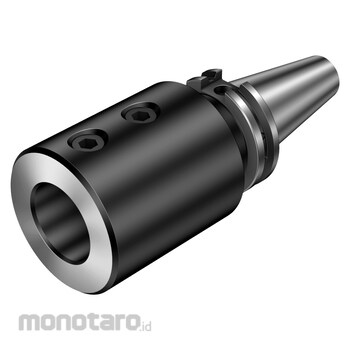

Sandvik ISO 7388-1 to ISO 9766 Adaptor
#Grup produk P110906384
Spesifikasi
| Balancing Method Code (BLMC) | BD: balanced by design |
|---|---|
| Body Material (BMC) | Steel |
| Body diameter (BD) (mm) | 75 |
| Body half taper angle (BHTA) (°) | 0 (zero) |
| Body length (LB) (mm) | 120 |
| Connection - Machine Side (ADINTMS) | ISO7388.1/DIN69871 -AD/B central/flange: ISO40 |
| Connection - Workpiece Side (ADINTWS) | Cylindrical clamping (ISO9766 drill shank) -metric: 40 |
| Connection Diameter Workpiece Side (DCONWS) (mm) | 40 |
| Connection Retention Knob Thread Size (CRKS) | M16 |
| Coolant Entry Style (CNSC) | 7: decentral over flange and axial |
| Coolant Exit Style (CXSC) | 1: axial concentric exit |
| Coolant Pressure (CP) (bar) | 80 |
| Data Chip Pocket (DCP) | Yes |
| Data Chip Pocket Size (DCPS) | D10/H4,5 |
| Functional diameter (DFC) (mm) | 44.45 |
| Functional length (LF) (mm) | 120 |
| Kappa [z-Axis Root.] (KAP) (°) | 0 (zero) |
| Maximum Rotation Speed (rpm) | 16000 |
| Standard Letter (STDLET) | AD/AF |
| Standard Number (STDNO) | ISO7388-1 |
