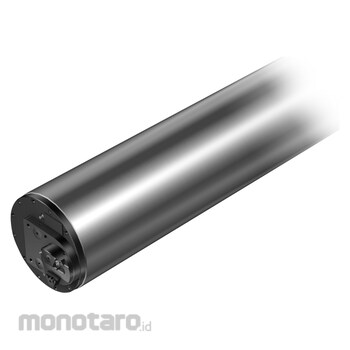

Sandvik Cylindrical Shank to CoroTurn SL Quick Change Dampened Adaptor
#Grup produk P110906241
Spesifikasi
| Body Material (BMC) | Steel |
|---|---|
| Body diameter (BD) (mm) | 203.2 |
| Body length (LB) (mm) | 3200 |
| Connection - Machine Side (ADINTMS) | Cylindrical shank without clamping features -inch: 8 |
| Connection - Workpiece Side (ADINTWS) | SL (quick change) -straight -size 80 |
| Connection Diameter (DCONMS) (mm) | 203.2 |
| Connection Diameter Workpiece Side (DCONWS) (mm) | 80 |
| Coolant Entry Style (CNSC) | 1: axial concentric entry |
| Coolant Exit Style (CXSC) | 1: axial concentric exit |
| Coolant entry thread size (CNT) | G 1\"-11 |
| Functional height (HF) (mm) | 0 (zero) |
| Functional length (LF) (mm) | 3200 |
| Functional width (WF) (mm) | 59.5 |
| Hand (HAND) | R |
| Maximum overhang (OHX) (mm) | 1955 |
| Minimum overhang (OHN) (mm) | 1355 |
| Silent Tools (DPC) | Yes |
| Torque (N m) | 50 |
| Z-component For Center of Gravity Location (CGZ) (mm) | 1609 |
