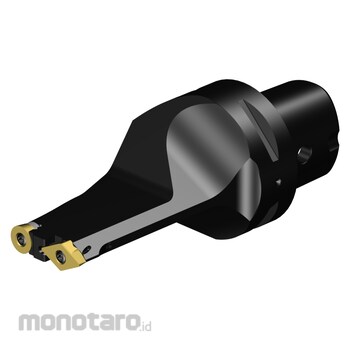

Sandvik CoroPlex Multifunctional Tool for Y-Axis Turning
#Grup produk P110906144
Spesifikasi
| Body Material (BMC) | Steel |
|---|---|
| Clamping Type Code (MTPCSW1) | S: clamp with screw through hole |
| Clamping Type Code (MTPCSW2) | S: clamp with screw through hole |
| Connection - Machine Side (ADINTMS) | Coromant Capto (bolt and segment clamping) -size C6 |
| Connection Diameter (DCONMS) (mm) | 63 |
| Coolant Entry Style (CNSC) | 3: axial concentric and radial entry |
| Coolant Exit Style Code (CXSCT1) | 3: axial inclined exit |
| Coolant Exit Style Code (CXSCT2) | 3: axial inclined exit |
| Coolant Exit Supply Type (CXSTT1) | 2: under the cutting edge |
| Coolant Exit Supply Type (CXSTT2) | 2: under the cutting edge |
| Coolant Pressure (CP) (bar) | 150 |
| Functional Height (HFT1) (mm) | 30 |
| Functional Height (HFT2) (mm) | 10 |
| Functional Length (LFT1) (mm) | 125 |
| Functional Length (LFT2) (mm) | 125 |
| Functional Width (WFT1) (mm) | 0.48 |
| Functional Width (WFT2) (mm) | 6 |
| Functional diameter (DFC) (mm) | 44 |
| Hand (HANDT1) | N |
| Hand (HANDT2) | N |
| Inclination Angle (LAMST1) (°) | 0 (zero) |
| Inclination Angle (LAMST2) (°) | 0 (zero) |
| Lead Angle (PSIR) (°) | 27.5 |
| Machine Side Body Angle (BAMST1) (°) | 0 (zero) |
| Machine Side Body Angle (BAMST2) (°) | 0 (zero) |
| Main Rotation Angle of Tool (MRATT1) (°) | 0 (zero) |
| Main Rotation Angle of Tool (MRATT2) (°) | 180 |
| Master Insert Identification (MIIDCSW1) | TR-DC1308 |
| Master Insert Identification (MIIDCSW2) | RCMT 12 04 MP |
| Maximum Overhang (OHXT1) (mm) | 125 |
| Maximum Overhang (OHXT2) (mm) | 125 |
| Maximum Ramping Angle (RMPXT1) (°) | 60 |
| Maximum Ramping Angle (RMPXT2) (°) | 90 |
| Orthogonal Rake Angle (GAMOT1) (°) | 0 (zero) |
| Orthogonal Rake Angle (GAMOT2) (°) | 0 (zero) |
| Overall height (OAH) (mm) | 63 |
| Part 2 of Cutting Item Interface Identifiers (CUTINT_MASTERCSW1) | CoroTurn TR ( TR-DC1308 ) |
| Part 2 of Cutting Item Interface Identifiers (CUTINT_MASTERCSW2) | Rail interface ( RC1204MP ) |
| Protruding Length (LPRT1) (mm) | 125 |
| Protruding Length (LPRT2) (mm) | 125 |
| Standard Number (STDNO) | ISO26623-1 |
| Tool Cutting Edge Angle (KAPR1_T1) (°) | 62.5 |
| Tool Cutting Edge Angle (KAPR2_T1) (°) | 62.5 |
| Torque (N m) | 3 |
| Usable Length (LUT1) (mm) | 60 |
| Usable Length (LUT2) (mm) | 60 |
| Workpiece Side Body Angle (BAWST1) (°) | 0 (zero) |
| Workpiece Side Body Angle (BAWST2) (°) | 0 (zero) |
| Xy-Plane Feed Direction (XYPFEEDIRT1) | Yes |
| Xy-Plane Feed Direction (XYPFEEDIRT2) | Yes |
