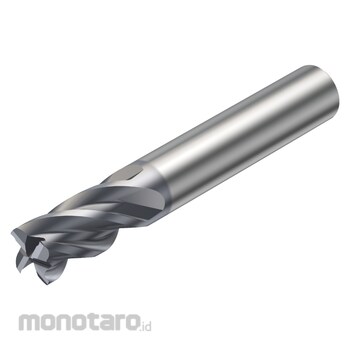

Sandvik CoroMill Plura Solid Carbide End Mill for Heavy Roughing
#Grup produk P110906108
Spesifikasi
| Axial rake angle (GAMP) (°) | 5.5 |
|---|---|
| Centre cutting capability (CCC) | Yes |
| Connection diameter tolerance (TCDCON) | h6 |
| Coolant Entry Style (CNSC) | 0: without coolant |
| Corner chamfer (KCH) (°) | 45 |
| Flute helix angle (FHA) (°) | 35 |
| Grade (GRADE) | 1630 |
| Maximum ramping angle (RMPX) (°) | 5 |
| Peripheral Effective Cutting Edge Count (ZEFP) | 4 |
| Radial rake angle (GAMF) (°) | 9 |
| Substrate (SUBSTRATE) | HW |
| Tolerance Class Cutting Diameter (TCDC) | h10 |
| Tool cutting edge angle (KAPR) (°) | 90 |
| Upper Cutting Diameter Tolerance (DCTOLU) (mm) | 0 (zero) |
