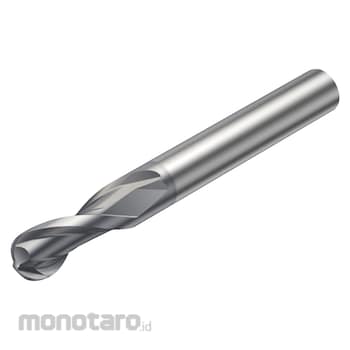

Sandvik CoroMill Dura Solid Carbide Ball Nose End Mill for Profiling
#Grup produk P110905941
Spesifikasi
| Axial rake angle (GAMP) (°) | 1.5 |
|---|---|
| Chip Breaker (CBMD) | STRAIGHT |
| Connection diameter tolerance (TCDCON) | h6 |
| Coolant Entry Style (CNSC) | 0: without coolant |
| Flute helix angle (FHA) (°) | 30 |
| Maximum Rotation Speed (rpm) | 80000 |
| Maximum ramping angle (RMPX) (°) | 15 |
| Radial rake angle (GAMF) (°) | 10.5 |
| Shank Standard Group (BSG) | COROMANT |
| Tolerance Class Cutting Diameter (TCDC) | h9 |
| Upper Cutting Diameter Tolerance (DCTOLU) (mm) | 0 (zero) |
| Workpiece Materials (TMC1ISO) | P (Steel), M (Stainless Steel), K (Cast Iron), S (Heat resistant super alloys) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
