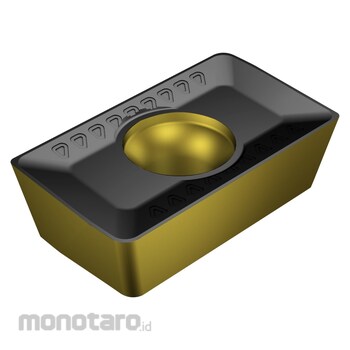

Sandvik CoroMill 216 Insert for Milling
#Grup produk P110905905
Spesifikasi
| Chip Breaker (CBMD) | WHX |
|---|---|
| Coating (COATING) | CVD TiCN+Al2O3+TiN |
| Corner Radius (RE) (mm) | 0.8 |
| Cutting edge count (CEDC) | 2 |
| Cutting edge effective length (LE) (mm) | 16 |
| Depth of cut maximum (APMX) (mm) | 16 |
| Fixing Hole Diameter (D1) (mm) | 4.4 |
| Grade (GRADE) | 4340 |
| Hand (HAND) | N |
| Insert Thickness (s) (mm) | 4.7625 |
| Insert mounting style code (IFS) | 3: partly cylindrical, 40-60° countersink on one or two sides |
| Insert shape code (SC) | A: rhombic 85° |
| Insert size and shape (CUTINTSIZESHAPE) | Mill APMT 1604 |
| Insert width (W1) (mm) | 9.52 |
| Substrate (SUBSTRATE) | HC |
| Workpiece Materials (TMC1ISO) | P (Steel), M (Stainless Steel), K (Cast Iron) |
