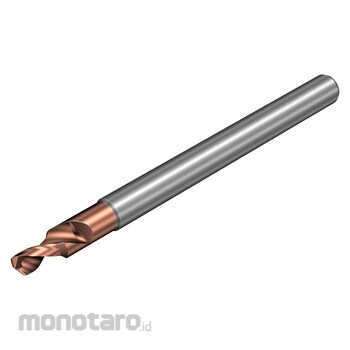

Sandvik CoroDrill 862-GM Solid Carbide Micro Drill for Pilot Holes
#Grup produk P110905844
Spesifikasi
| Achievable hole tolerance (TCHA) | H8 |
|---|---|
| Chip Breaker (CBMD) | GP |
| Coating (COATING) | PVD AlCrN |
| Connection - Machine Side (ADINTMS) | Cylindrical shank (DIN6535-HA) -metric: 4 |
| Connection Diameter (DCONMS) (mm) | 4 |
| Connection diameter tolerance (TCDCON) | h8 |
| Coolant Entry Style (CNSC) | 0: without coolant |
| Face Effective Cutt Edge Count (ZEFF) | 2 |
| Grade (GRADE) | X2BL |
| Maximum regrinds (NORGMX) | 0 (zero) |
| Orthogonal rake angle (GAMO) (°) | 20.45 |
| Overall Length (mm) | 50 |
| Point angle (SIG) (°) | 140 |
| Step included angle (STA) (°) | 90 |
| Substrate (SUBSTRATE) | HC |
| Workpiece Materials (TMC1ISO) | P (Steel), M (Stainless Steel), K (Cast Iron), N (Non-ferrous metals), S (Heat resistant super alloys), H (Hardened steel), O (Non-ISO (Other)) |
