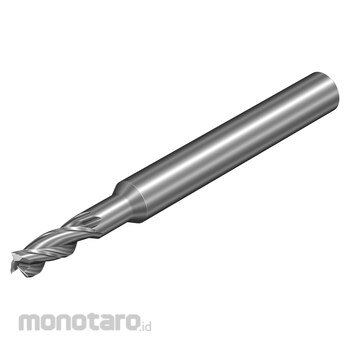

Sandvik CoroDrill 860-NM Solid Carbide Drill
#Grup produk P110905701
Spesifikasi
| Achievable hole tolerance (TCHA) | H7 |
|---|---|
| Chip Breaker (CBMD) | NM |
| Chip flute length (LCF) (mm) | 55 |
| Connection - Machine Side (ADINTMS) | Cylindrical shank (DIN6535-HA) -metric: 12 |
| Connection Diameter (DCONMS) (mm) | 12 |
| Connection diameter tolerance (TCDCON) | h6 |
| Coolant Entry Style (CNSC) | 4: axial concentric entry on circle |
| Coolant Pressure (CP) (bar) | 20 |
| Cutting diameter (DC) (mm) | 11.5 |
| Face Effective Cutt Edge Count (ZEFF) | 2 |
| Functional length (LF) (mm) | 100.5 |
| Grade (GRADE) | H10F |
| Maximum Rotation Speed (rpm) | 13286 |
| Maximum regrinds (NORGMX) | 3 |
| Orthogonal rake angle (GAMO) (°) | 9.65 |
| Overall Length (mm) | 102 |
| Point angle (SIG) (°) | 130 |
| Point length (PL) (mm) | 1.5 |
| Shank Standard Group (BSG) | DIN 6537 K |
| Substrate (SUBSTRATE) | HF |
| Usable length (LU) (mm) | 36 |
| Usable length diameter ratio (ULDR) | 3.1304 |
| Workpiece Materials (TMC1ISO) | N (Non-ferrous metals) |
