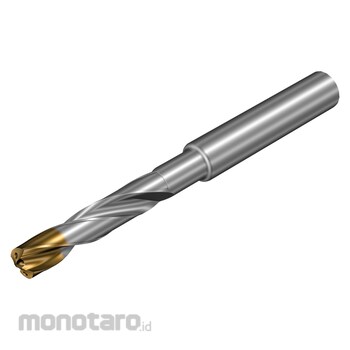

Sandvik CoroDrill 860-GM Solid Carbide Drill
#Grup produk P110905686
Sebelum PPN:
Rp9.499.900 - Rp17.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Achievable hole tolerance (TCHA) | H9 |
|---|---|
| Chip Breaker (CBMD) | GM |
| Coating (COATING) | PVD TiAlSiN+TiSiN |
| Connection - Machine Side (ADINTMS) | Cylindrical shank (DIN6535-HA) -metric: 18 |
| Connection Diameter (DCONMS) (mm) | 18 |
| Connection diameter tolerance (TCDCON) | h6 |
| Coolant Entry Style (CNSC) | 4: axial concentric entry on circle |
| Cutting diameter (DC) (mm) | 17 |
| Face Effective Cutt Edge Count (ZEFF) | 2 |
| Grade (GRADE) | X1BM |
| Maximum Rotation Speed (rpm) | 4307 |
| Maximum regrinds (NORGMX) | 3 |
| Orthogonal rake angle (GAMO) (°) | 20.45 |
| Point angle (SIG) (°) | 140 |
| Point length (PL) (mm) | 3.0937 |
| Substrate (SUBSTRATE) | HC |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Image on this page only as Representative Image, Please check the specifications of each size and color for detailsUlasan Produk
