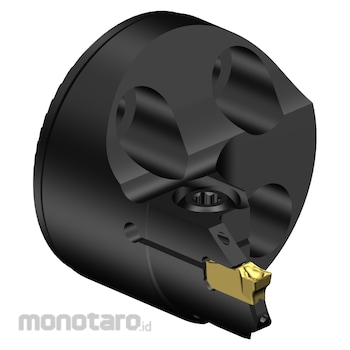

Sandvik CoroCut QI Head for Face Grooving
#Grup produk P110905561
Spesifikasi
| Clamping type code (MTP) | C: clamp on top of insert |
|---|---|
| Connection - Machine Side (ADINTMS) | SL head (screw mounted) -size 32 |
| Connection Diameter (DCONMS) (mm) | 32 |
| Coolant Entry Style (CNSC) | 1: axial concentric entry |
| Coolant Exit Style (CXSC) | 3: axial inclined exit |
| Coolant Exit Type (CXST) | 3: both over and under the cutting edge |
| Coolant Pressure (CP) (bar) | 150 |
| Cutting depth maximum (CDX) (mm) | 8.7 |
| Functional height (HF) (mm) | 0.1 |
| Functional length (LF) (mm) | 37 |
| Maximum overhang (OHX) (mm) | 37 |
| Overall height (OAH) (mm) | 31.6 |
| Torque (N m) | 3.5 |
| Workpiece side body angle (BAWS) (°) | 0 (zero) |
