The ATEX - IECEx certified air-operated double diaphragm pumps, with their unique design and limited size, are ideally suited to be installed directly on industrial equipment for the chemical sector, to pump ink and paint, on printing machines, in oil circulation and in applications where moderate quantities of fluid must be pumped in small spaces.
The CUBIC range includes the MIDGETBOX pump which is currently the smallest and highest performing pump on the market for the chemical sector.

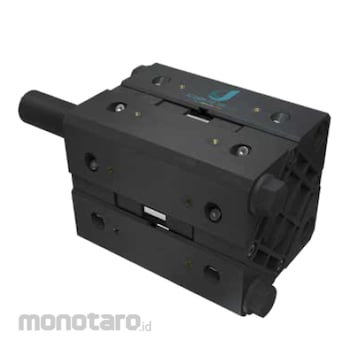

Debem Cubic-Air Operated Diaphragm Pump
#Grup produk P110905066
Sebelum PPN:
Rp9.699.900 - Rp15.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Air Fitting | G 3/8” f |
|---|---|
| Air-Side Diaphragm Material | NBR |
| Dimensions (HxWxD) (mm) | 105x201x105 |
| Fluid-Side Diaphragm Material | PTFE |
| Main Application Sector | Water and Sludge Treatment, Packing Glue, Paper and Paper Mills, Ceramic, Stone, Marble, Glass and Mining Industry, Galvanic and Electronic Industry, Chemical Industry, Graphic Industry |
| Max Diameter of Suspended Solid (mm) | 0.5 |
| Max Negative Suction Head - Dry-Running (m) | 3 (the value depends on the configuration of the pump) |
| Max Negative Suction Head - Pump Primed (m) | 9.5 |
| Max Supply Air Pressure (bar) | 8 |
| Maximum Flow Rate (L/minute) | 17 |
| Maximum Head (m) | 80 |
| Noise Level (dB) | 65 |
| O-Ring Materials | Viton® |
| Pump Model | CU15 |
| Suction/Delivery Connection | G 3/8” f |
| Volume per Stroke (cc) | 10.3 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Product designed and constructed in Italy- PATENTED stall-prevention pneumatic circuit
- Operates with non-lubricated air
- Self-priming
- Dry operation
- ATEX certification for ZONE 1 - ZONE 2
- IECEx certification
- Adjustable operating speed
- Extremely versatile
- Suitable for pumping fluids in demanding applications
- Suitable for continuous use
