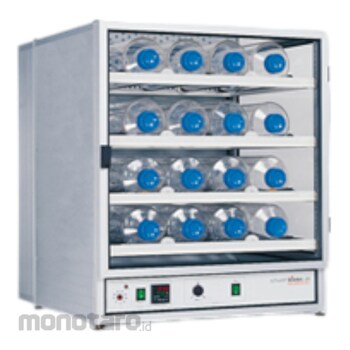

Schuett-Biotec Incudrive D-I Drive-Unit for Bottles with Incubating Hood

for rotating and rolling of test tubes and bottles with air-circulation system
- Designed for defined slow rotation in lower range of speed or fast rotation for thorough mixing of samples.
- The rotational speed of cell culture bottle with Ø 120 mm is approx. 0.1 to 4 rpm, continuously adjustable.
- For bottles and vessels with an outer diameter of 60-400 mm and maximum length of the vessels 520 mm (incl. screw cap).
- The device has been designes for use at benchtop. Working temperature internal +5°C above room temperature up to +50°C.
- The INCUDRIVE D-I provides space for up to 4 individually removable roller inserts. The vertical placement of the roller inserts is predetermined.
- Alternatively, there may be wire mesh trays with mounting brackets instead of roller inserts to allow for placing various equipments in the same environmental/temperature conditions.
- With stainless steel bearings, suitable for continuous mode with heavy load.
- The toothed belt transmission from motor to drive axles reliably prevents from slippage or stopping of the bottles.
- The door of the incubator is made of transparent, thermally insulated UV-resistant plastics for permanent monitoring of the experiment.
- The temperature is regulated by an air-circulation system with integrated electronic temperature control.
- Additionally, the actual and set temperature is constantly shown on the LED-display.
