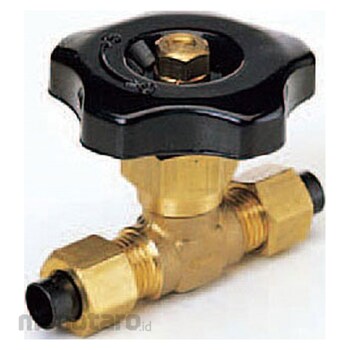

Nitta Miniature Valve Quick Seal Type (In-Line Type)
#Grup produk P110813446
Spesifikasi
| Type | Inch size |
|---|---|
| Shape | Inline type |
| Suitable fluid | Air, water |
| Dimension L (mm) | 54.2 |
| Maximum Operating Pressure (MPa) | 1 |
| Applicable Pipe Outer Diameter (inch) | 45295 |
| Dimension D1 (mm) | 12 |
| Dimension K (mm) | (Fully open) 37.4, (Fully closed) 33.4 |
| Dimension L1 (mm) | 27.1 |
| Dimension S (mm) | 4.6 |
| Dimensions m (mm) | 40 |
| Mass (g) | 80 |
| Negative pressure performance (kPa) | -98.642 |
| Operating Temperature Range (°C) | (Air) -20 to +80, (water) 0 to +40 |
| Tube Insertion Length F (mm) | 15 |
| Width Across Flats H1 (mm) | 14 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Flow rate adjustment is easy. The flow rate can be finely adjusted.
